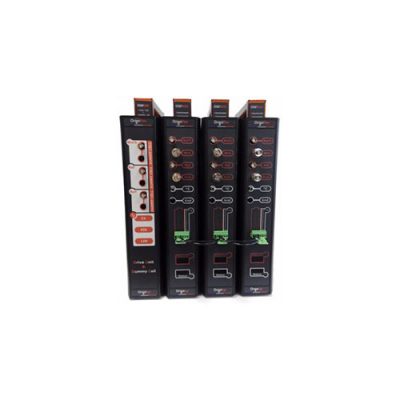

OrigaFlex – Bipotentiostat mode
Study electrochemical phenomena with a reliable and precise bipotentiostat / galvanostat. Discover our range of OrigaFlex to perform very precise measurements with two working electrodes, while truly measuring the auxiliary electrode:
- Potentiostat
- Galvanostat
- Impedance (10µHz – 5MHz) optional: OGFEIS
- Combinable powers: 500 mA, 1A, 5A or 10A
- Made in France


OrigaFlex – Bipotentiostat mode
Specifications
Model |
OGF 500 |
OGF 01A |
OGF 05A |
OGF 10A |
---|---|---|---|---|
Potentiostat | Yes | Yes | Yes | Yes |
Galvanostat | Yes | Yes | Yes | Yes |
Impedance | Option
OGFEIS |
Option
OGFEIS |
Option
OGFEIS |
Option
OGEIS |
Max current | ±500mA | ±1A | ±5A | ±10A |
Output voltage | ±20V | ±20V | ±20V | ±20V |
Maximum applied potential | ±15V | ±15V | ±15V | ±15V |
Voltage ranges | ±15V | ±15V | ±15V | ±15V |
Potential Accuracy | < 0.1 % FSR (Full Scale Range) | |||
Potential Resolution | 0.003% | 0.003% | 0.003% | 0.003% |
Scanning speed |
200V/s |
200V/s |
200V/s |
200V/s |
Current ranges | 9 (14 with low current probe) | 9 (13 with low current probe) | 6 (11 with low current probe) | 6 (11 with low current probe) |
Current ranges
Single device |
±5nA to ±500mA | ±10nA to ±1A | ±50 µA to ±5 A | ±100 µA to ±10 A |
With the low current probe option | 1pA to 10nA | 1pA to 10nA | 1pA to 10nA | 1pA to 10nA |
Current accuracy | < 0.1 % FSR (Full Scale Range) | |||
Current resolution | 0.003% FSR Best: 150 fA | 0.003% FSR Best: 300 fA | 0.003% FSR Better: 1.5 nA | 0.003% FSR Better: 3 nA |
Input impedance | 1 TΩ
(//20pF) |
1 TΩ
(//20pF) |
1 TΩ
(//20pF) |
1 TΩ
(//20pF) |
interfaces | Control of several OGFs at the same time: by Ethernet
Control of a single OGF: by USB 2.0 |
|||
Acquisition time | > 100 µs | > 100 µs | > 100 µs | > 100 µs |
Ohmic drop compensation | Yes, Static automatic or manual. | |||
Electrode connections | 2, 3 and 4 | 2, 3 and 4 | 2, 3 and 4 | 2, 3 and 4 |
A/D Converter | 16 bit | 16 bit | 16 bit | 16 bit |
ISE capability | 10 µHz to 5 MHz if connected to an OGFEIS | |||
Analog I/O | Yes, 1 | Yes, 1 | Yes, 1 | Yes, 1 |
External current booster | Not available | Not available | Not available | Not available |
Floating mode option | No | No | No | No |
Analog filters | Yes
1µs to 1s |
Yes
1µs to 1s |
Yes
1µs to 1s |
Yes
1µs to 1s |
Digital filters | Yes | Yes | Yes | Yes |
Dimensions(D*W*H in mm) | 300x85x450 | 300x85x450 | 300x120x450 | 300x220x450 |
Power required | 88-264 Vac
47-63Hz, 30VA |
88-264 Vac
47-63Hz, 40VA |
115/230 Vac
47-63Hz, 150VA |
115/230 Vac
47-63Hz, 150VA |
Weight | 4.55kg | 4.55kg | 8kg | 13.4kg |
PC software | OrigaMaster 5 (via USB 2.0) and OrigaViewer (via Ethernet) | |||
Cable length | On demand | On demand | On demand | On demand |
Temperature measurement | -10°C to 105°C
14°F to 221°F |
-10°C to 105°C
14°F to 221°F |
-10°C to 105°C
14°F to 221°F |
-10°C to 105°C
14°F to 221°F |
