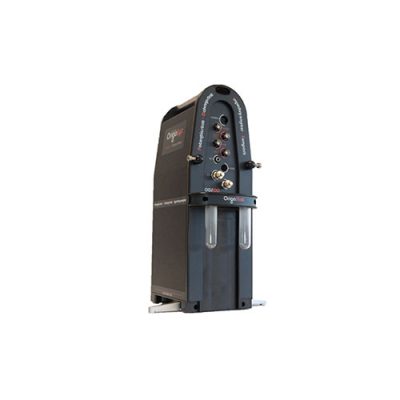

OrigaStat – OGS100

The OGS100 is an “ALL IN ONE” system with a modern look: Potentiostat, Galvanostat and Impedance meter. Benefit from a reliable and very precise device for your measurements. Suitable for both teaching and research. OrigaLys flagship product, the OGS100 has just celebrated its 10th anniversary and a presence in more than 30 countries.

Functions included:

  • Potentiostat
  • Galvanostat
  • Impedance meter (EIS)
  • Rotating Electrode Speed ​​Controller (RDE)
  • Temperature measurement (T ° C)
  • PH / mV measurement
  • GND connection
  • Two RS232 connectors for controlling external devices
  • Analog I / O connector for controlling external devices
Do NOT CHANGE OR REMOVE THIS ELEMENT

specifications

Potentiostat Yes
Galvanostat Yes
Impedancemeter Yes
Maximum current ±100 mA
Compliance voltage ±17.5 V
Max aplied potential ±5 V
Voltage range ±1 V, ±2 V and ±5 V
Potential accuracy < 0.1 % FSR (Full Scale Range)
Potential resolution 0.003 % FSR (Best: 30 µV)
Maximum scan rate 200 V/s
Current ranges 9 (12 with low current probe)
With standard board ±1 nA to ±100 mA
With low current option 1 pA to 10 nA
Current accuracy < 0.1 % FSR (Full Scale Range)
Current resolution 0.003 % FSR (Best: 30 fA)
Potentiostat rise/fall time < 2 µs
Input impedance > 1 TΩ (//20 pF)
Interfaces USB 2.0
Acquisition time >100 µs
IR Compensation Manual and automatic feedback.

Manual and automatic Static.

Electrodes connections 2, 3 and 4
A/D  converter 16 bits
EIS capability 10 µHz to 1 KHz. Up to 5 MHz if connected to the OGFEIS
Analog I/O Yes, 1
External current booster From 5 A to 20 A

Floating option

Yes
Analog filters Yes, from 1 µs to 1 s

Digital filters

Yes
Dimensions (DxWxH in mm) 326 x 135 x 418
Dimensions (unfolded feet/DxWxH in mm) 326 x 247 x 418
Power equirement 90-264 Vac, 47-63 Hz, 30 VA
Weight 3.95 kg
Weight with OrigaCell KIT 5.5 kg
PC Software

OrigaMaster 5

Cell cable lenght

On demand

Temperature control -10°C to 105°C (14°F to 221°F)

Manufacturers

show DATA — DO NOT CHANGE ID–

Document

OGS100 Brochure

Industries

show DATA — DO NOT CHANGE ID–

Methods

show DATA — DO NOT CHANGE ID–

* For More Information Please Click Here

Spares and accessories for OrigaStat – OGS100

OGFEIS for OrigaStat

Impedance channel for OGS 10µHz – 5MHz – OGFEIS

OrigaBoost – Current Booster – 10A

Current booster: From ± 5 A, ± 10 A, ± 15 A to ± 20 A, Output voltage: 20V

OrigaBoost – Current Booster – 15A

Current booster: From ± 5 A, ± 10 A, ± 15 A to ± 20 A, Output voltage: 20V

OrigaBoost – Current Booster – 20A

Current booster: From ± 5 A, ± 10 A, ± 15 A to ± 20 A, Output voltage: 20V

OrigaBoost – Current Booster – 5A

Current booster: From ± 5 A, ± 10 A, ± 15 A to ± 20 A, Output voltage: 20V

OrigaBoost – Drive Unit

Current booster: From ± 5 A, ± 10 A, ± 15 A to ± 20 A, Output voltage: 20V

OrigaCell Kit

Integrated electrochemical cell: An electrode holder with integrated LED, A beaker holder, A retention tank, An orange protective bubble.

OrigaMix – Magnetic Stirrer

OrigaMµ – Low Current Probe

Low current potentiostat. Current ranges: ± 1 pA, ± 10 pA, ± 100 pA, ± 1 nA and ± 10 nA., Better current resolution: 30 aA.

OrigaSens – Temperature Sensor

OrigaTrod

OrigaTrod: Rotating Disc Electrode, From 100 to 10,000 rpm

Other Complementary Accessories

Electrodes, End Caps, Cables and Glass Cells.
