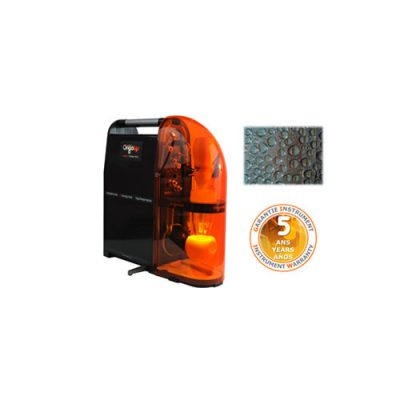

OGS 200 Surface Treatment Pack

Do NOT CHANGE OR REMOVE THIS ELEMENT

specifications

Potentiostat Yes
Galvanostat Yes
Impedance Meter Yes
Maximum Current ± 2 A
Output Voltage ± 35 V
Max Potential Applied ± 15 V
Voltage Ranges ± 3 V, ± 6 V and ± 15 V
Potential Accuracy <0.1% FSR (Full Scale Range)
Potential Resolution 0.003% FSR Best: 91 µV
Sweep Speed 200 V / s
Current Ranges 9 (14 with low current probe)
Current Ranges (Device Only) ± 20 nA to ± 2 A
With the Low Current Probe Option 1 pA to 10 nA
Current Accuracy <0.1% FSR (Full Scale Range)
Current Resolution 0.003% FSR Best: 600 fA
Potentiostat Response Time <2 µs
Input Impedance > 10 G Ω  (// 20 pF)
Interface USB 2.0
Acquisition Time > 100 µs
Ohmic Drop Compensation Yes, Automatic or manual feedback.

Static automatic or manual.

Electrode Connections 2, 3 and 4
A / D Converter 16 bits
EIS Capability 10 µHz to 1 KHz. Up to 5 MHz if connected to an  OGFEIS
Analogue I / O Yes, 1
External Current Booster 5 A to 20 A
Floating Mode Option Yes
Analog Filters Yes, 1 µs to 1 s
Digital Filters Yes
Dimensions (D x W x H in mm)400 x 135 x 418
Dimensions (With feet) (D x W x H in mm)400 x 247 x 418
Required Power 90-264 Vac, 47-63 Hz, 120 VA
Weight 7.25 kg
Weight with OrigaCell Kit 8.8 kg
PC Software OrigaMaster 5
Cable Length On demand
Temperature Measurement -10 ° C to 105 ° C(14 ° F to 221 ° F)

Manufacturers

show DATA — DO NOT CHANGE ID–

Industries

show DATA — DO NOT CHANGE ID–

Methods

show DATA — DO NOT CHANGE ID–

Spares and accessories for OGS 200 Surface Treatment Pack

OrigaStat – All in one pack

A wide range of Potentiostats Single-Channel for your electrochemical measurement. The devices you will find above are “all-in-one”. Indeed, there are: Potentiostat Galvanostat, Impedancemeter, Speed controller for the RDE, pH-meter, Temperature probe, Built-in electrochemical cell.

Electrodes

Discover our selection of electrodes: Reference electrodes, Auxiliary electrodes, Combined, Selective, combined and non-combined pH, Micro electrodes, Conductivity cells, Electrolytic bridge, Filling solution.
