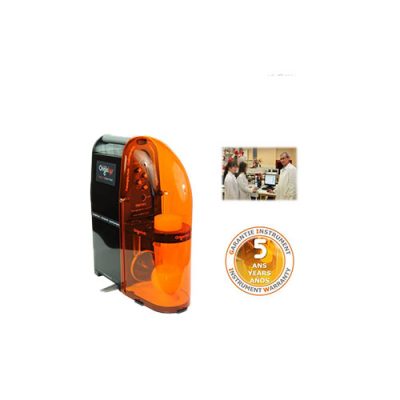

OGS 080 Teaching Pack

Do NOT CHANGE OR REMOVE THIS ELEMENT

specifications

Potentiostat Yes
Galvanostat Yes
Impedance Meter Yes
Maximum Current ± 100 mA
Output Voltage ± 17.5 V
Max Potential Applied ± 5 V
Voltage Ranges ± 1 V, ± 2 V and ± 5 V
Potential Accuracy <0.1% FSR (Full Scale Range)
Potential Resolution 0.003% FSR Better: 30 µV
Sweep Speed 200 V / s
Current Ranges 9
Current Ranges(Device Only) ± 1 nA to ± 100 mA
With the Low Current Pobe Option Not available
Current Accuracy <0.1% FSR (Full Scale Range)
Current Resolution 0.003% FSR Best: 30 fA
Potentiostat Response Time <2 µs
Input Impedance

> 1 T Ω  (// 20 pF)

Interface USB 2.0
Interface > 100 µs
Ohmic Drop Compensation Yes, Automatic or manual feedback.

Static automatic or manual.

Electrode Connections 2, 3 and 4
A / D Converter 16 bits
EIS Capability 10 µHz to 1 KHz. Up to 5 MHz if connected to an  OGFEIS
Analogue I / O

Not available

External Current Booster Not available
Floating Mode Option Yes
Analog Filters Yes, 1 µs to 1 s
Digital Filters Yes
Dimensions (D x W x H in mm)326 x 135 x 418
Dimensions(With feet) (D x W x H in mm)326 x 247 x 418
Required Power 90-264 Vac, 47-63 Hz, 30 VA
Weight 3.95 kg
Weight with OrigaCell Kit 5.5 kg
PC Software OrigaMaster 5
Cable Length On demand
Temperature Measurement Not available
