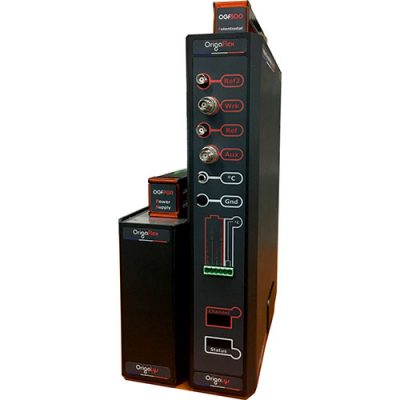

OrigaFlex – OGF01A Pack

The OGF01A Pack is a turnkey, autonomous and independent system, with a maximum current of 1 A. It is made up of the following elements:

  • The OrigaFlex OGFPWR power supply module
  • The OrigaFlex OGF01A Galvanostat Potentiostat
  • All connection cables adapted to your experience
  • The OrigaMaster 5 PC software



Main function included:

  • Potentiostat
  • Galvanostat
  • Impedance 10 µHz – 5 MHz (optional)
  • Real-time temperature measurement
  • Support for Batteries (Swagelok, Button cell, etc)
Do NOT CHANGE OR REMOVE THIS ELEMENT

specifications

 Maximum current ±1 A
Current ranges  ±10 nA to ±1 A
 Current resolution  0.003 %. Best : 300 fA
 Current accuracy  < 0.1 % Full scale range
 Compliance voltage  ±20 V
 Applied potential  ±15 V
 Potential resolution  0.003 %
 Current accuracy  < 0.1 % Full scale range
 Weight  7.85 kg
 Dimensions in cm
Length 28.5

Width

16.6
Heigth 45
Power 88-264 Vac – 47-63 Hz – 30 VA

Manufacturers

show DATA — DO NOT CHANGE ID–

Document

OGF01A Pack Brochure

Industries

show DATA — DO NOT CHANGE ID–

Methods

show DATA — DO NOT CHANGE ID–

* For More Information Please Click Here

Spares and accessories for OrigaFlex – OGF01A Pack

OrigaLine – Battery Holder

Button cell battery holder, Temperature sensor included, Thickness: 3.2 mm maximum, Diameter: 20 mm maximum

OrigaLine – Battery Holder

OrigaSens – Temperature Probe

OGFEIS

Impedance modulus: 10 µHz – 5 MHz

OrigaTrode Kit

OrigaTrod: Rotating Disc Electrode, OrigaBox: Speed ​​controller, From 100 to 10,000 rpm

OrigaMµ

Low current potentiostat, Current ranges: ± 1 pA, ± 10 pA, ± 100 pA, ± 1 nA and ± 10 nA, Better current resolution: 30 aA

Other Complementary Accessories

Electrodes, End Caps, Cables and Glass Cells.
