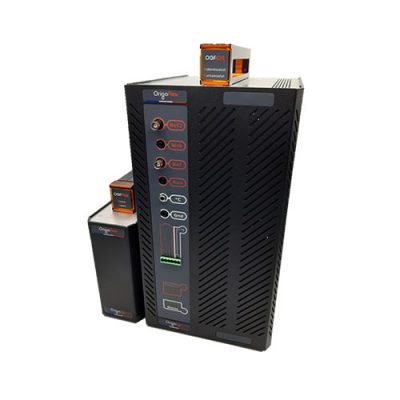

OrigaFlex – OGF10A Pack

The OGF10A pack is a turnkey system, autonomus and independant with maximum current of 10 A. It is composed of the following elements:

  • Power supply OrigaFlex OGFPWR
  • Potentiostat Galvanostat OrigaFlex OGF10A
  • All the connection cables adapted to your experiments
  • PC Software OrigaMaster 5



Main function included:

  • Potentiostat
  • Galvanostat
  • Impedance 10 µHz – 5 MHz (optional)
  • Temperature measurement in real time
  • Batteries holders (Swagelok, Coin Cell, etc)
Do NOT CHANGE OR REMOVE THIS ELEMENT

specifications

Potentiostat Yes
Galvanostat Yes
Impedance Optional OGFEIS
Maximum current ±10 A
Compliance voltage ±20 V
Max applied potential ±15 V
Voltage range ±15 V
Potential accuracy < 0.1 % FSR (Full Scale Range)
Potential resolution 0.003 % FSR
Maximum scan rate 200 V/s

Current ranges

6 (11 with low current probe)
With standard board ±100 µA to ±10 A
With low current option 1 pA to 10 nA
Current accuracy
< 0.1 % FSR (Full Scale Range)
Current resolution 0.003 % FSR (Best: 3 nA)
Input impedance 10 GΩ (//20 pF)
Interfaces Control of many OGF at the same time: by Ethernet

Control of only one OGF: by USB 2.0

Acquisition time >100 µs
IR Compensation Yes: static manual and static automatic
Electrodes connections 16 bits
EIS Capability 10 µHz to 5 MHz if connected to the OGFEIS
Analog I/O Yes, 1
External current booster Not available
Floating option No, versatile connection
Analog filters Yes, from 1 µs to 1 s
Digital filters Yes
Dimensions (DxWxH in mm) 300 x 220 x 450
Power requirements 115/230 Vac

47-63 Hz, 150 VA

Weight 13,4 kg
PC Software OrigaMaster 5 (by USB 2.0) and OrigaViewer (by Ethernet)
Cell cable length On demand
Temperature control -10°C to 105°C (14°F to 221°F)

Manufacturers

show DATA — DO NOT CHANGE ID–

Document

OGF10A Pack Brochure

Industries

show DATA — DO NOT CHANGE ID–

Methods

show DATA — DO NOT CHANGE ID–

* For More Information Please Click Here

Spares and accessories for OrigaFlex – OGF10A Pack

OrigaLine-Battery Holder

OGFEIS

Impedance modulus: 10 µHz – 5 MHz

OrigaTrode Kit

OrigaTrod: Rotating Disc Electrode, OrigaBox: Speed ​​controller, From 100 to 10,000 rpm

OrigaMµ

Low current potentiostat, Current ranges: ± 1 pA, ± 10 pA, ± 100 pA, ± 1 nA and ± 10 nA, Better current resolution: 30 aA

Battery Support

Button cell battery holder, Temperature sensor included, Thickness: 3.2 mm maximum, Diameter: 20 mm maximum

Other Complementary Accessories

Electrodes, End Caps, Cables and Glass Cells.
