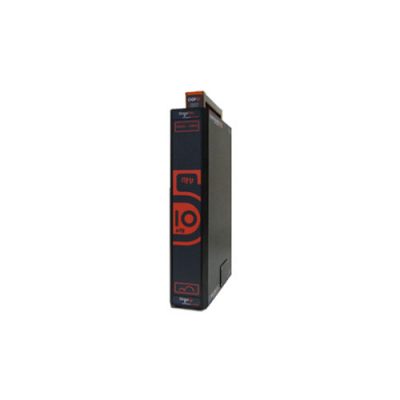

Electrochemical Impedance Module (EIS)
The OGFEIS is an impedance module, which once connected to a Potentiostat and Galvanostat, makes it possible to carry out EIS measurements (Electrochemical Impedance Spectroscopy or EIS).
Available impedance methods:
- Potentiostatic Dynamic EIS
- Galvanostatic Dynamic EIS
- Potentiostatic Fixed Frequency EIS (Capacitance): Mott-Schottky
The OGFEIS can be connected to the potentiostats below:
- OGF 500
- OGF 01A
- OGF 05A
Electrochemical Impedance Module (EIS)
Specifications
| Origa Flex – OGF EIS | |
| Frequency range | 10µHz to 5MHz |
| Frequency resolution | 5ppm |
| Input range | ±15V |
| Types of signals | Sinusoide and Average from 1 to 10 determinations |
| Potential: Amplitude AC | 6 µV to 7.5 V maximum |
| Current: Amplitude AC | 100% of range I. Best resolution: 6 ppm |
| Data | Nyquist, Bode, Admittance, Mott-Schottky |
| To analyze | Circular regression, Excel/Open Office/ZView export |
| PC software | OrigaMaster and OrigaViewer |
