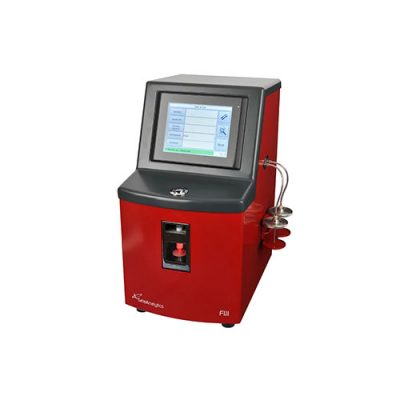

FIJI MF – FAME in MultiFuels
The patented FIJI has been developed to offer a rapid and easy check on Parts Per Million (ppm or mg/kg) levels of FAME in aviation fuel, distillates, residuals and gasoline.
FIJI uniquely utilises FTIR (Fourier Transform Infra-Red Spectroscopy) technology and a patented sample preparation system which allows FAME detection accuracy down to the 10 mg/kg level.
FIJI can be used as a field or lab based screening tool to give a quick indication of possible FAME contamination that may then necessitate further investigations. The instrument helps to prevent expensive testing and avoid costly delays of fuel release.
FIJI MF – FAME in MultiFuels
Features
- 10-150ppm (mg/kg) in Jet Fuels
- 20 mg/kg to 50% in Distillate & Residual Fuels
- Measures the presence of all FAME types C8 to C22
- Approved for co-processed fuels
- No hydrocarbon cleaning solvents required
- Laboratory and field instrument
- Suitable for untrained operators
- Patent Approved
Specifications
| Measurement Range | 10-150 mg/kg FAME in Jet Fuels / 20 mg/kg to 50% FAME in Distillate & Residual Fuels |
| Test Duration | 20 minutes |
| Sample Size | 50 ml |
| Operating Temperature Range | 5 to 35 °C maximum (80% RH) |
| Connectivity | USB ‘A’ (2 ports), LIMS |
| Power | 50W maximum |
| Voltage | 100/250V, 50/60Hz |
| Size (HxWxD) | 55 x 38 x 42 cm |
| Weight | 27 kg |
