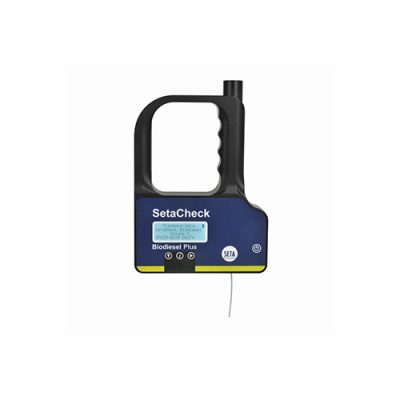

SetaCheck Biodiesel Plus
SetaCheck Biodiesel Plus is a handheld instrument designed to provide fast, accurate and repeatable on-site measurement of biodiesel content in diesel fuel blends.
Using unique, Mid-IR technology, the analyser has a measurement range of 0.1% to 80% biodiesel. Only 2 ml of sample is required and a test is completed in less than 1 minute with results displayed on a bright backlit screen.
SetaCheck’s test procedure is simple, requiring no special technical skills or laboratory conditions, making it ideal for batch checking fuels at terminals to monitoring standby fuel supplies.

SetaCheck Biodiesel Plus
Features
- 0.1% to 80% measurement range
- No dilution required, samples measured directly
- Internal rechargeable battery
- Bright backlit screen displays the Biodiesel concentration (% by volume)
- Can store both a factory and a local calibration
- User calibration available via PC software
- Includes optional built-in 9:1 dilution mode
- Correlates with EN 14078
Specifications
Range | 0.1% to 80% |
Operating Temperature | 5-40 °C |
Test Duration | Less than 1 minute |
Measuring Units | % by volume |
Sample Volume | Approx 2 mL |
Number of Tests | In excess of a hundred tests on a single charge |
Charging | Micro USB |
Power | Rechargeable lithium ion battery |
Size (HxWxD) | 36x15x20cm |
Weight | 1 kg |
