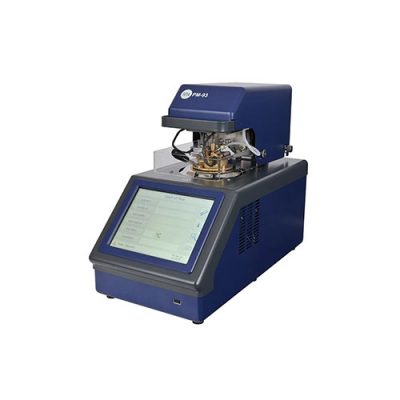

PM-93 Pensky-Martens Flash Point Tester
The Seta PM-93 is a fully automated Pensky-Martens closed cup flash point tester which combines strict method conformance with the latest control technology and safety systems to provide the ultimate level of fast, accurate and safe analysis. You can determine flash points up to 400 °C using either standard mode for where the flash point is known or search mode for when it is not. Once complete, the PM-93 graphically displays results on the LCD screen. You can save results to the internal memory, email the results, export results to a USB, or transfer results via QR code. SQC software analyses results, calculates mean, standard deviation, standard error and repeatability and plots results in accordance with ASTM D6299.

PM-93 Pensky-Martens Flash Point Tester
Features
- Easy operation with touch screen
- Automatic flash point determination
- Gas or electric ignition
- Patented ‘SafeFlash’ auto fire extinguisher
- Large capacity memory for storage of 30 test profiles, operator names and test methods
- Real time display of test progress and storage for 2000 results
- LIMS connectivity, results can be emailed, saved to USB or transferred via QR code
- Statistical Quality Control (SQC) software to analyse results to conform to ASTM D6299
Specifications
Ignition System | Electric or gas |
Flash Detection | Thermal |
Cooling | Fast forced air (integral fan)
|
Heating rate | Fast heating rate (>10 °C/min) and standard; 5.5 °C/min; 3 °C/min; 1.3 °C/min; 1 °C/min |
Temperature range | Ambient +5 °C to 400 °C |
Internal memory | 30 programmable test profiles, operator names, test methods and unlimited tests results |
Fire Detection | Thermal with optional integral Fire Extinguisher |
Size/Weight | 38.5 x 24 x 50 cm / 25 kg |
Voltage | 230 Vac +/-15% or 110 Vac +/-15%. Frequency 50/60 Hz. Auto-sensing – no selector switch required |
