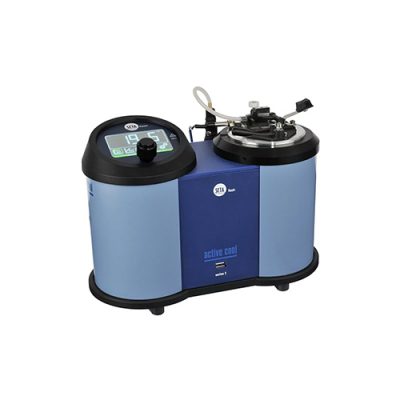

Setaflash Series 3 ActiveCool Flash Point Tester
Setaflash Series 3 ActiveCool provides fast and reliable flash point results and requires minimum operator expertise. It has been designed to rapidly and efficiently carry out Flash / No Flash tests to determine the flash point of liquids and semi-solids in the 10 to 135 °C temperature range.
- Compliance
- Safety
- Product quality
- 2 ml of sample and a result in less than 2 minutes
Designed for precise and accurate tests, barometric pressure is measured by an internal barometer and correction is automatically applied to the test result. Unknown samples can be tested using ramp mode.
Setaflash Series 3 ActiveCool has a very simple user interface with colour digital display and touch screen icons which guide the operator through a straightforward testing process. For easy record keeping the instrument stores 100,000 test results which can be saved and transferred via a USB port.
The versatile range of Setaflash instruments are ideal for use in the laboratory, production line or for portable test applications.

Setaflash Series 3 ActiveCool Flash Point Tester
Features
- Flash / No Flash & Ramp modes
- Flash point test in less than 2 minutes
- Small sample size – 2 or 4 ml
- Automatic flash detection
- Automatic barometric correction
- Electronic peltier cooling
- USB port and result storage
- Portable operation
- Simple calibration
Specifications
Temperature Range | 10 to 135 °C |
Cup Material | Aluminium or stainless steel insert |
Test Modes | Rapid Equilibrium and Ramp |
Sample Size | 2 ml for flash points up to 100 °C 4 ml for flash points above 100 °C |
Test Duration | 1 minute below 100 °C, 2 minutes above 100 °C, or user determination 1 to 99 minutes |
Ramp Rate | 2 °C/min ramp |
Heating and Cooling System | Peltier Cell |
Power | 200 W (maximum) |
Voltage | 100/240 V, 50/60 Hz |
Gas supply | Laboratory gas, 3 kPa (0.44 psi) maximum pressure or Butane from optional Portable Gas Tank 13667-0 |
Size (HxWxD) | 19.5 cm x 29.5 cm x 14 cm |
Weight | 3 kg |
