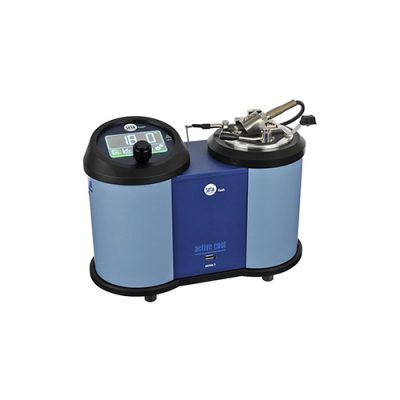

Setaflash Series 3e ActiveCool Flash Point Tester
Setaflash Series 3e ActiveCool provides fast and reliable flash point results and requires minimum operator expertise. It has been designed to rapidly and efficiently carry out Flash / No Flash tests to determine the flash point of liquids and semi-solids in the 10 to 135 °C temperature range.
- Compliance
- Safety
- Product quality
- 2 ml of sample and a result in less than 2 minutes
Designed for precise and accurate tests, barometric pressure is measured by an internal barometer and correction is automatically applied to the test result. Unknown samples can be tested using ramp mode.
Setaflash Series 3 ActiveCool has a very simple user interface with colour digital display and touch screen icons which guide the operator through a straightforward testing process. For easy record keeping the instrument stores test results which can be saved and transferred via a USB port.
The versatile range of Setaflash instruments is ideal for use in the laboratory, production line or for portable test applications.

Setaflash Series 3e ActiveCool Flash Point Tester
Features
- Flash / No Flash & Ramp modes
- Electric ignitor
- 10 to 135°C temperature range
- Flash point test in less than 2 minutes
- Small sample size (2 or 4ml)
- Automatic flash detection
- Electronic peltier cooling
- Inbuilt touch screen
- Inbuilt USB port
- Portable operation
- °C or °F display
Specifications
Temperature Range |
10 to 135 °C |
Sample Cup Material | Aluminium |
Test Modes | Rapid Equilibrium and Ramp |
Sample Size | 2 ml for flash points up to 100 °C 4 ml for flash points above 100 °C |
Test Duration | 1 minute below 100 °C, 2 minutes above 100 °C, or user determination 1 to 99 minutes |
Ramp Rate | 2 °C/min ramp |
Heating and Cooling System | Peltier Cell |
Power | 200 W (maximum) |
Voltage | 100/240 V, 50/60 Hz |
Ignitor | Electric |
Size (HxWxD) | 19.5 cm x 29.5 cm x 14 cm |
Weight | 3 kg |
