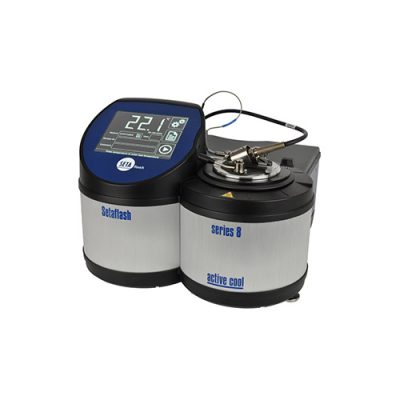

Setaflash Series 8 ActiveCool Flash Point Tester
The Setaflash Series 8 ActiveCool, closed cup flash point tester provides fast and reliable flash point results with a wide temperature range of -30 to 135 °C with no external cooling required.
With the Series 8, a test takes less than 2 minutes using just a 2 or 4 ml sample size. A simple user interface with colour digital display and touchscreen icons guides you through the straightforward testing process. For easy record keeping the instrument stores 100,000 test results which can be saved and transferred via a USB port.
Designed for precise and accurate tests, barometric pressure is measured by an internal barometer and correction is automatically applied to the test result. Unknown samples can be tested using ramp mode.

Setaflash Series 8 ActiveCool Flash Point Tester
Features
- Simple test procedure
- Compact, rugged design
- Electric ignition
- Automated flash detection
- Ramp mode for unknown samples
- Automatic barometric pressure correction
- Peltier heating and cooling
- Fire detection (alarm and relay)
- USB port and result storage
Specifications
Temperature Range | -30 to 135 °C |
Temperature Selection | °C or °F |
Ignitor | Electric |
Heating/Cooling Method | Peltier cell |
Temperature Ramp Mode | Automatic or custom settings (ramp rate up to 10 °C/min) |
Sample Cup Material | Aluminium |
Pressure Correction | Automatic |
Data Storage | 1 GB |
Voltage | 110 to 250 Vac, 50/60 Hz |
Size (HxWxD) | 30 cm x 34 cm x 38 cm |
Weight | 8 kg |
