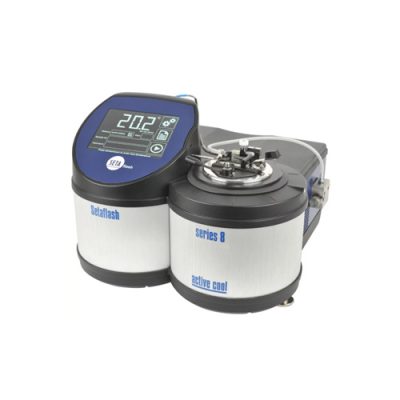

Setaflash Series 8 Flash Point Tester with Gas Ignitor – High Temperature
The Setaflash Series 8 High Temperature, closed cup flash point tester provides fast and reliable flash point results with a wide temperature range of 5 to 300 °C.
With the Series 8, a test takes less than 2 minutes with just a 2 or 4 ml sample size. A simple user interface with colour digital display and touchscreen icons guides you through the straightforward testing process. For easy record keeping the instrument stores 100,000 test results which can be saved and transferred via a USB port.
Designed for precise and accurate tests, barometric pressure is measured by an internal barometer and correction is automatically applied to the test result. Unknown samples can be tested using ramp mode.

Setaflash Series 8 Flash Point Tester with Gas Ignitor – High Temperature
Features
- Simple test procedure
- Compact, rugged design
- Gas ignition
- Automated flash detection
- Ramp mode for unknown samples
- Automatic barometric pressure correction
- Fire detection (alarm and relay)
- USB port and result storage
Specifications
Temperature Range | Ambient +5 to 300 °C |
Sample Size | 2 or 4 ml according to method |
Ignitor | Gas |
Test Duration, Rapid Equilibrium | 1 minute below 100 °C, 2 minutes above 100 °C, FAME 1 minute or user defined 1 to 99 minutes |
Test Duration, Ramp Mode | Typically 7 minutes |
Heating/Cooling Method | Ceramic Pad, Forced Air (post-test cooldown) |
Sample Cup Material | Aluminium |
Voltage | 100 to 240 V, 50/60 Hz Auto-sensing |
Power | 320 W |
Size | 30 cm x 34 cm x 38 cm |
Weight | 8 kg |
