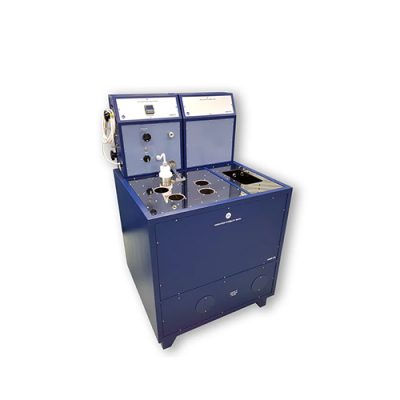

Seta Auto-Oxidation Stability Bath

This unit measures the induction period for oxygen in gasoline, and allows the weight of gum and residue in aviation fuel to be determined by direct weighing. Comprising a heated water bath with reflux condenser, a cold water plunge tank for cooling test vessels after each test, and an integral system for charging oxidation vessels prior to test. The Seta Auto-Oxi Control System provides automatic monitoring of up to four pressure test vessels. High quality pressure transducers and system components ensure reliable operation and fully traceable results.

Do NOT CHANGE OR REMOVE THIS ELEMENT

Features

  • Operating temperature 100°C
  • Water Bath with integral condenser
  • 4 x test stations
  • Cold plunge bath
  • Seta Auto-Oxi Automatic Pressure Monitoring
  • Integral vessel charge system
  • Constant level device

Specifications

Capacity 60 litres
Fluid Type Water
Temperature 100 °C Thermometer: 0 to 105 °C
Max No of Test Vessels 4 (Not included with the instrument)
Vessel Charging 1380 kPa (200 psi) maximum
Vessel Cooling Cold water plunge tank
Pressure Range/Accuracy 0-1600 kPa (0-16 bar)/0.1% of span
Max Test Duration 120 hrs / 7200 mins
Calibration Pressure and Temperature sensing with traceable certificate
Safety & Protection CE certified / IP 67 rated
Software Operating Requirements Windows XP,Vista,7, or 8 (32 and 64 bit) USB or LAN Printer (optional)
Power 3 kW
Voltage 220/240 V, 50/60 Hz
Size (HxWxD)/Weight 93 cm x 86.5 cm x 71.5 cm / 118 kg
