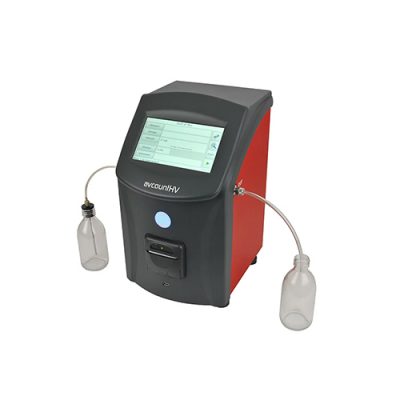

AvCount3 Particle Counter
The AvCount3 is a compact bench-top automatic particle counter, used to measure the size and distribution of particles and water droplets in light and middle distillate fuels, including aviation fuel and kerosine, biodiesel, low viscosity oils and hydraulic oils.
Featuring a simple user interface with touch screen display, the fully-automated test means extensive operator training is not required before using the instrument. The simplicity of test set up and automation, gives operators the time to work on something else, helping to reduce labour costs.
The AvCount3’s enhanced functionality includes a dilution protocol for testing of high viscosity samples, real-time display of test progess, 14 embedded test methods, user and sample identification and password protected levels.
Statistical Quality Control software allows analysis of results in accordance with ASTM D6299.
AvCount3 Particle Counter
Features
- ISO 11171 calibration
- Cumulative counts/ml
- ISO 4406 cleanliness codes
- Colour touch screen
- Dilution ratio calculation
- Real time display of test progress
- User programmable
- LIMS, network and VNC connectivity
- Programmable alarm limits
- 14 embedded test methods
- In-field verification and calibration
Specifications
| Particle size range | ISO 11171: 4 µm(c) to 70 µm(c) (calibration for larger sizes available on request) |
| Number of measuring channels | 16 size channels displayed on instrument, 4 µm(c) to 70 µm(c) |
| Counts per measurement (max) | 60,000 per ml |
| Samply viscosity (max) | 64 mm2/s (using internal pump), 200 mm2/s (pressure fed @ 3 BarG) (SA1950-0 Sample Delivery System is available as an accessory) |
| Sample temperature range | Ambient 0 to 70 °C |
| Results | 500,000 result memory. Print via internal printer, export to LIMS, USB or QR code |
| Sample flow rate | 30 ml/min ±5 ml/min |
| Total sample volume used | 80 ml for ASTM D7619 & IP 565, from 20 ml for other methods (includes flush cycles) |
| Power | 100/240 V, 50/60 Hz, Auto-sensing universal power supply |
| Size (HxWxD) | 37 cm x 23 cm x 27 cm |
| Weight | 6 kg |
