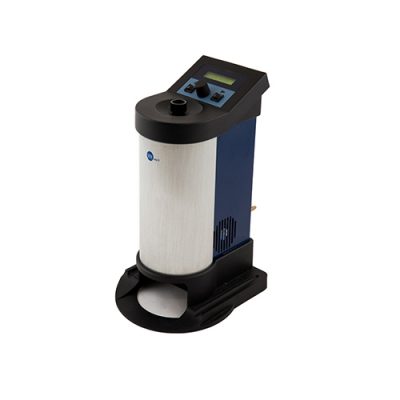

Setavap 2 Vapour Pressure Tester
The Setavap 2 vapour pressure tester is used for the measurement of gasoline, solvents, light crude oils, and similar products, using the “Mini” method. Fully evacuated chamber technology guarantees that the sample is tested under a full vacuum, as required by the “Mini” test methods. Unlike the expansion technologies that rely on moving pistons.
Setavap 2 Vapour Pressure Tester
Features
- Rapid and automatic testing
- “Mini” method uses 3 ml sample size
- Selectable units – kPa or psi
Specifications
| Test Temperature | 37.8 °C (100 °F) ±0.1 °C |
| Test Pressure Range | 0 to 200 kPa ±0.5 kPa (0 to 29 psi ±0.1psi) |
| Pressure Resolution | 0.1 kPa (0.1 psi) |
| Sample Size | 3 ml |
| Vapour to Liquid Ratio | 4:1 |
| Display Units of Pressure | kPa or psi (user selectable) |
| Vacuum Requirement | better than 0.01 kPa (abs) |
| Voltage | 110/120 V or 220/240 V, 50/60 Hz (switchable) |
| Power | 70 W |
| Size (HxWxD) | 37 x 13 x 20 cm |
| Weight | 3.5 kg |
