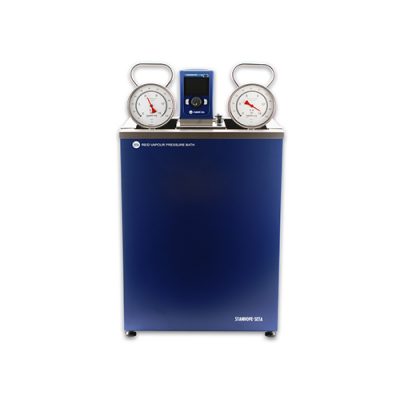

Seta Reid Vapour Pressure Bath
The Seta Reid Vapour Pressure Bath is a floor standing water bath specifically designed for the determination of vapour pressure with Seta Reid or Seta Vapour pressure cylinders.
Seta Reid Vapour Pressure Bath
Features
- Accepts up to 6 pressure cylinder assemblies
- Temperature range ambient +5 °C to 90 °C (194 °F) ± 0.1 °C
- Uniformity better than ± 0.1 °C @ 37.8 °C ( ± 0.2 °F @ 100 °F)
- Digital temperature control
- Low fluid level and over-temperature protection
Specifications
| Test Temperature Range | Ambient:+5 °C to 90 °C (9 °F below ambient to 194 °F) |
| Temperature Uniformity | ± 0.1 °C @ 37.8 °C |
| Bath Volume | 80 litre |
| Bath Fluid | Water (De-ionised) |
| Cylinder Capacity | Up to 6 cylinder assemblies |
| Voltage | 220/240 V, 50/60 Hz |
| Power | 2000 W |
| Size (HxWxD) | 77 cm x 55 cm x 51 cm |
| Weight | 70 kg |
