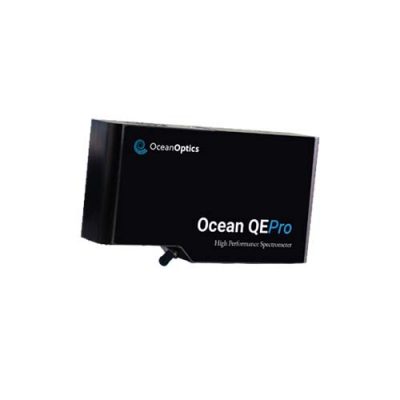

QEPRO-FL Spectrometer
The QE Pro Series are high sensitivity spectrometers with low stray light performance. It is ideal for a wide range of low light level applications such as fluorescence, DNA sequencing and Raman analysis.
The sensitivity and large dynamic range of the QE Pro combine to make it the highest-performance modular spectrometer in its class. Key features include advanced optoelectronics and thermoelectric cooling to provide thermal stability, and onboard spectral buffering to ensure data integrity at high collection rates.
QEPRO-FL Spectrometer
Features
- Highest Sensitivity: High quantum efficiency detector
- Powerful: signal-to-noise ratio >1000:1
- Stable: cooled detector allows low light detection and prevents spectral distortion
- Configurable: interchangeable slits, internal shutter (optional) and various gratings
- Buffering: up to 15,000 spectra
Specifications
| Communications | |
| Wired | USB 2.0, 480 Mbps (USB 1.1 compatible); RS-232 (5-wire) |
| Detector | |
| Detector | Back-thinned, TE Cooled, 1024 x 58 element CCD array |
| Entrance slit | 200 µm |
| Grating | GRATING_#HC1-QE |
| Pixels | 1024 |
| Detector Collection Lens | No |
| Quantum Efficiency | 90% (peak) |
| Electronics | |
| Power Requirement | Supply voltage: 4.5 – 5.5 V |
| Strobe Functions | continuous and single strobe |
| Environmental | |
| Humidity | ≤ 90% noncondensing |
| Operating Temperature | 0 °C – 50 °C |
| Physical | |
| Dimensions | 182 mm (7.17 in.) x 110 mm (4.33 in.) x 47 mm (1.85 in.) |
| Weight | 1.15 kg (2.6 lbs.); power supply: 0.45 kg (1 lb.) |
| Spectroscopy | |
| Integration Time | 8 ms – 3600 s |
| Optical Resolution | 6.87 nm FWHM (typical) |
| Wave Length Range | 350 nm – 1.1 μm |
| Dynamic Range | ~85,000:1 |
| Input Fiber Connector | SMA 905 |
| Onboard Memory | 15,000 spectra |
| Signal to Noise Ratio | 1000:1 (single acquisition) |
| Stray light | <0.08% at 600 nm; 0.4% at 435 nm |
