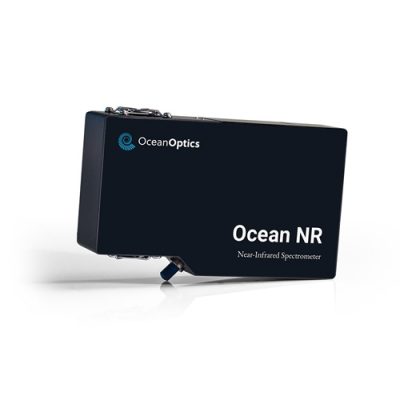

NR 1.7 Spectrometer
The NR spectrometer sets a new standard in NIR analysis, offering advanced capabilities that address the most challenging spectroscopic applications. Designed for precision, consistency, and adaptability, the NR is ideal for detecting subtle spectral features, measuring low concentration samples and performing in demanding environments. In Standard gain mode NR series, the spectrometers benefit from a better SNR, for measurable signals you can better detect small changes of signal.
NR 1.7 Spectrometer
Features
- Analyzing complex samples: Detect subtle spectral features with precision.
- Low-light or low-concentration measurements: Produce cleaner spectra for reliable measurements and lower limits of detection.
- Detecting weak signals: Amplified sensitivity for lowreflectance or strongly absorbing materials.
- High-speed measurements: Perfect for dynamic processes or samples moving on conveyor belts.
- Thermal stability: Cooled detector reduces dark noise for demanding environments.
Specifications
| Spectrometers |
NR-512-1.7-10 |
NR-512-1.7-25 | NR-512-1.7-50 | NR-512-1.7-100 |
NR-512-1.7-200 |
| Slits (μm) |
10 |
25 | 50 | 100 |
200 |
| Optical resolution (FWHM) (nm) |
2.72 |
2.85 | 4.02 | 6.71 |
13.03 |
| Wavelength Range |
900 – 1650 nm |
||||
| Grating Groove Density (lines/mm) |
95 |
||||
| Grating Blaze Wavelength |
1100 nm |
||||
| Order-sorting |
Longpass filter (transmits >830) installed |
||||
| Sensitivity |
High Gain Mode configurations available |
||||
| Integration time |
1 ms – 120 s |
||||
| SNR (single scan @ 10 ms) |
10,000:1 |
||||
| Dynamic Range (Single Scan) |
21,000:1 |
||||
| Dark noise (@minimum integration time) |
3.1 |
||||
| Corrected Linearity (10-90%) |
99.80% |
||||
| Connectors |
16 pin Samtec TFM, RS-232, SMA 905 (input fiber), USB Type-C |
||||
| Physical dimensions |
182.25 x 109.19 x 46.45 mm |
||||
| Weight |
1.17 kg |
||||
| Temperature (operation) |
10 °C – 35 °C |
||||
| Temperature (storage) |
-30 °C – 70 °C |
||||
| Scan Rate |
275 Hz |
||||
