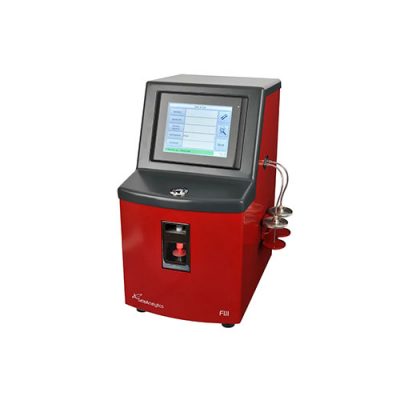

FIJI JF – FAME in Jet Instrument

The patented Fame In Jet Instrument (FIJI) offers a rapid and easy check on parts per million (ppm or mg/kg) levels of FAME in aviation fuel.
FIJI uniquely utilises state of the art Fourier Transform Infrared Spectroscopy (FTIR) technology and a patented sample preparation system which allows FAME detection accuracy down to the 10 mg/kg level.
FIJI can be used as a field or lab based screening tool to give a quick indication of possible FAME contamination that may then require further investigation. The instrument helps to prevent expensive testing and avoid costly delays of fuel release.

[vc_raw_html el_id=”showRequestpopupBody”]RG8lMjBOT1QlMjBDSEFOR0UlMjBPUiUyMFJFTU9WRSUyMFRISVMlMjBFTEVNRU5U[/vc_raw_html]

Features

  • Measures the presence of all FAME types C8 to C22
  • Approved for co-processed fuels
  • Analysis time 20 minutes
  • 50 ml sample volume
  • No hydrocarbon cleaning solvents required
  • Laboratory and field instrument
  • Suitable for untrained operators
  • Patent approved

Specifications

Measurement Range 10-150 mg/kg FAME in Aviation Turbine Fuels
Test Duration 20 minutes
Sample Size 50 ml
Operating Temperature Range 5 to 35 °C maximum (80% RH)
Connectivity USB ‘A’ (2 ports), LIMS
Power 50W maximum
Voltage 100/250V, 50/60Hz
Size (HxWxD) 55 x 38 x 42 cm
Weight 27 kg
