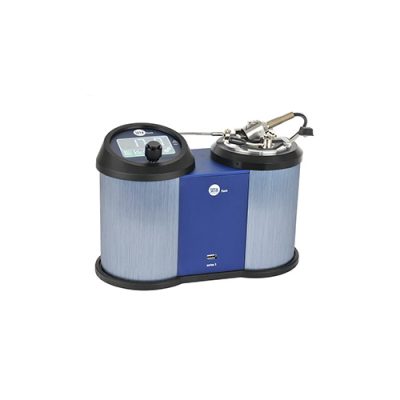

Setaflash Series 3e Flash Point Tester
The Setaflash Series 3e closed cup flash point tester is a compact, bench top/portable instrument used to carry out ‘flash/no flash’ tests and determine flash point temperatures.
The Series 3e can perform tests at temperatures ranging from 0 to 300 °C (with the 13870-0 Seta Cooling Module allowing temperatures below ambient).
Operated by a touchscreen, icons guide you through the simple test procedure, with a test taking less than 2 minutes with just 2 or 4 ml of sample required. Up to 10,000 test results can be saved in the instruments internal memory which can be saved and transferred via USB port for data analysis.
Setaflash Series 3e Flash Point Tester
Features
- Electric ignition
- Ambient to 300 °C
- Small sample size
- Under 2 minute test
- Simple operation
- Compact, rugged, portable design
- Suitable for unknown samples using ramp mode
- Automated flash detection
- Automatic barometric pressure correction
- Colour touchscreen
- USB port and result storage
Specifications
| Temperature Range | Ambient to 300 °C |
| Temperature Ramp Mode | Automatic or custom settings (ramp rate: up to 6 °C/min and beep rate: up to 5 °C/B intervals) Extended test range, 100 °C from start temperature |
| Temperature Selection | °C or °F |
| User interface | Colour LCD display – touch screen sensitive |
| Navigation | Control knob (rotational and push-down) |
| Data Storage | 1GB (internal memory and integrated USB port) |
| Sample Size | 2 ml or 4 ml |
| Pressure Correction | Automatic pressure correction |
| Voltage | 110 to 250 V a.c~50/60 Hz (universal) |
| Power | 200 W (Max.) |
| Size (HxWxD) | 19.5 cm x 29.5 cm x 14 cm |
| Weight | 3 kg |
