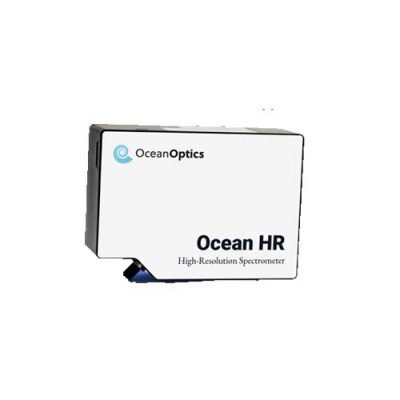

HR-2XR300
300 Line Composite Blaze.
Specifications
| Entrance Slit | HR-2XR300-5 | HR-2XR300-10 | HR-2XR300-25 | HR-2XR300-50 | HR-2XR300-100 | HR-2XR300-200 |
| Optical and Spectroscopic | ||||||
| Wavelength Range (configuration-dependent) |
200-1100 | |||||
| Resolution | 0.705 | 0.94 | 1.175 | 1.974 | 3.76 | 7.191 |
| Integration Time | 1 μs – 2 s | |||||
| OSF | Y | |||||
| Dynamic Range | 3400:1 | |||||
| Signal-to-Noise (per second with High Speed averaging mode) | 25800:1 | |||||
| Signal to Noise
(Single scan @ 10 ms) |
380:1 | |||||
| Optical Resolution (FWHM) | <1.0 nm w/25 μm slit (configuration-dependent) | |||||
| Scan rate (type)² | 725 Hz | |||||
| Thermal Wavelength Drift | 0.02 nm/°C | |||||
| Triggering | Software, External rising edge, External level | |||||
| Wavelength Range (beginning/ ending wavelengths may vary marginally) |
220-1050 nm | |||||
| Detector | ||||||
| Active Pixels | 2098 | |||||
| Corrected Linearity | 99.40% | |||||
| Electrical | ||||||
| Connectors | USB Type-C, SMA, TFM-108-02-L-DH, RS-232 | |||||
| USB Type-C Ratings: VCC | Minimum 4.40V, Nominal 5V, Maximum 5.25V | |||||
| IO Standard | 3.3V CM | |||||
| Absolute Maximum Ratings: Voltage on any pin (other than input power) |
5V | |||||
| Interface | USB 2.0 High Speed | |||||
| External Triggering Jitter | 21 ns | |||||
| Mechanical | ||||||
| Physical Dimensions | 148.8 x 106.4 x 48.2 mm | |||||
| Weight | 931 g | |||||
| Input Fiber Connector | SMA 905 | |||||
| Environmental | ||||||
| Temperature (operation) | 0 °C – 55 °C | |||||
| Temperature (storage) | -30 °C to 70 °C | |||||
| Humidity | <85% | |||||
